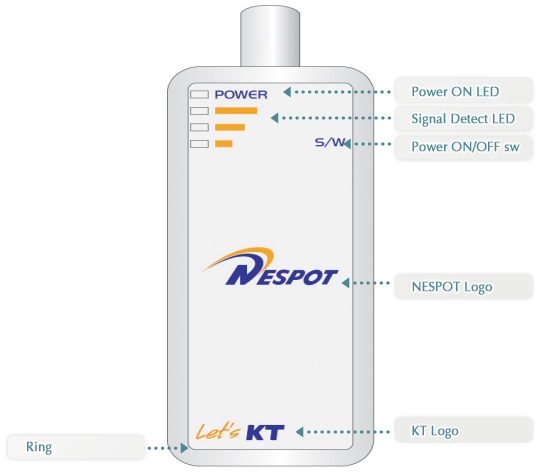

| The Wireless LAN Detector
is best solution to detect the 2.4GHz signal by LED. The
primary function of the Wireless LAN Detector is to receive
2.4GHz RF signal and turn on LED. Before turn on the computer
with wireless internet module, Wireless LAN Detector will
check RF signal which can make wireless 2.4GHz internet
connection path between access point and notebook computer. |
| |
|
 |
Parameters |
specifications
|
Remarks |
Input frequency range
|
2400~2475MHz |
|
| Inband max input power |
-40dBm |
|
| Outband max input power |
-10dBm |
|
| Output |
NESPOT LED Blink |
Green LED |
| Battery |
23AE type |
23A type available |
| Current |
50mA max |
@ Continuous operation |
| Size |
25x70x22 |
W x D x H in mm |
|
|
|
|
|
