Encryption technology of Biometrics Identification
The system verify with only registered fingerprint.

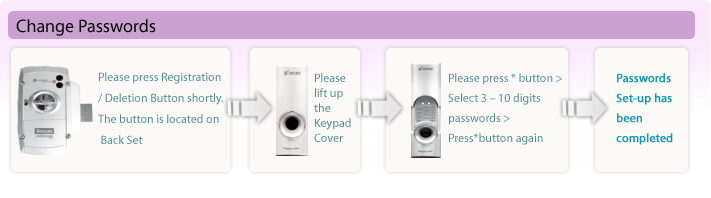

Open by passwords
User can open the door using passwords
Convenient Operation
System is controlled by one touch operation
Watch Dog Function
The system has a self-control function and it will notice when system error
Reliable Operation
All functions are informed by Beep sound and it gives user for easy operation without User¡¯s Manual
Strong 12 keys Buttons
The 12 keys passwords buttons are designed for strong consolidated and no marks of fingerprint are appeared on buttons.
Low battery warning alarm
Battery Exchange Audible warning to replace the batteries
Emergency battery power snap terminal
The 9V battery snap terminal is equipped incase of the batteries are ran down
Prevent from forced door open
System locking function that all the open methods are not to be used from outside
Power cut off function
The power will cut off incase of entering wrong passwords (Power will cut off for 30 seconds as per 3 times of incorrect data input)
Passwords/Fingerprint memory function
User¡¯s passwords set-up and fingerprint data are saved in system thus these will not be deleted by electric discharge
Dual security locking function
Permanent locking switch is located on back-set and provides more secured function

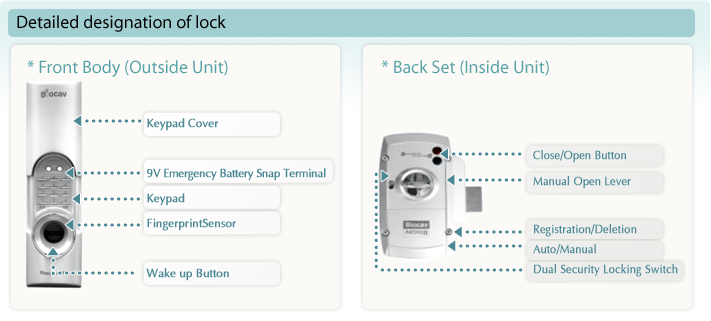

Classification Descriptions
Front Body (Out side Unit) Iron Die-casting / 205(H)¡¿70(W)¡¿50(D)
Back Set (Inside Unit) Iron Die-casting / 173(H)¡¿105(W)¡¿38(D)
Battery 1.5V Alkaline Battery 4ea
Mortise Steel
Locking Sensor Plastic Sensor
User Registration 50 Persons
Recognition Less than 1sec
F.R.R Less than 0.001%
