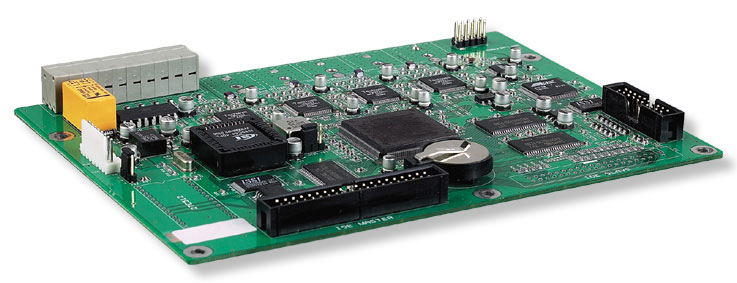

The interlink ‘I-DVR’ is the powerful Stand-Alone DVR
(Digital Video Recorder) to provide high quality images
with low cost, and so the legacy time-lapse VCR and multiplexer(or
QUAD) can be replaced with ‘I-DVR’.
The interlink ‘I-DVR’ records the video images and
sounds in digital so it provides clean images like a
picture. It also has a function to record continuously
without changing a media, so you don’t have to worry
about the frequent change of tapes. And the user can
check and record not only single camera but also multiple
cameras.
The Interlink ‘I-DVR’ provides the stability with using
various compression methods and various product model,
so you can plan competitive business in short time.
- Record with high quality- Search by date, time and
each channel
- Various Compression : MJPEG, MPEG 1/2/4,H.263
- Real Time monitoring
- Up to 30 frames/sec on display& recording
- Attach above 1HDDs according to design
- Monitor through CCTV monitor or TV
- Motion Detection Function
- Attach to several sensors
- Support the audio by each channel (option)
- Split 1/4/9/16 screens |
| |
|
 |
| Model Name |
Number of channels |
Display frame |
Recording frame |
| IDVR0130 |
1ch |
Total 30 frs |
Total 30 frs |
| IDVR0430 |
4ch |
Total 120 frs |
Total 120 frs |
| IDVR0830 |
8ch |
Total 240 frs |
Total 240 frs |
| IDVR1615 |
16ch |
Total 480 frs |
Total 240 frs |
|
| |
|
 |
| Option |
IDVR specifications |
| Video Input |
1 / 4 / 8 / 16 (NTSC/PAL) |
| Video |
Output |
TV Monitor : 1 BNC, 1Vp-p Composite(NTSC/PAL) |
| Display |
1 / 4 / 9 / 16 Split ? Screen |
| Compression |
MPEG1, MPEG2, MPEG4, H.263, MJPEG |
| Display Resolution |
720 x 480 |
| Recording Resolution |
720 x 480 |
| Alarm In / Out |
1/4/8/16(Input) , 1 Output |
| System Control |
Button, remote controller |
| HDD Bay |
Up to 2EA(1 fixed, 1 removable) |
| Program Function |
<Display>
Control of brightness, Contrast, AGC by channel
<Record>
Manual, ScheduleHigh, Medium, Low
<System
Utility>
Password/Time
Setting/Auto lock/Disk format/ Disk check/ Auto detection/
Search Speed Control
<Search>
Date, Time, Channel |
| Hardware Spec |
Power |
AC 100~ 240 V, 50/60 Hz |
| Size |
Different by each model |
| Option
/ Customizing |
| Camera Control |
Camera Pan/Tilt, Zoom In/Out/Focus |
|
| |
|
|
|
